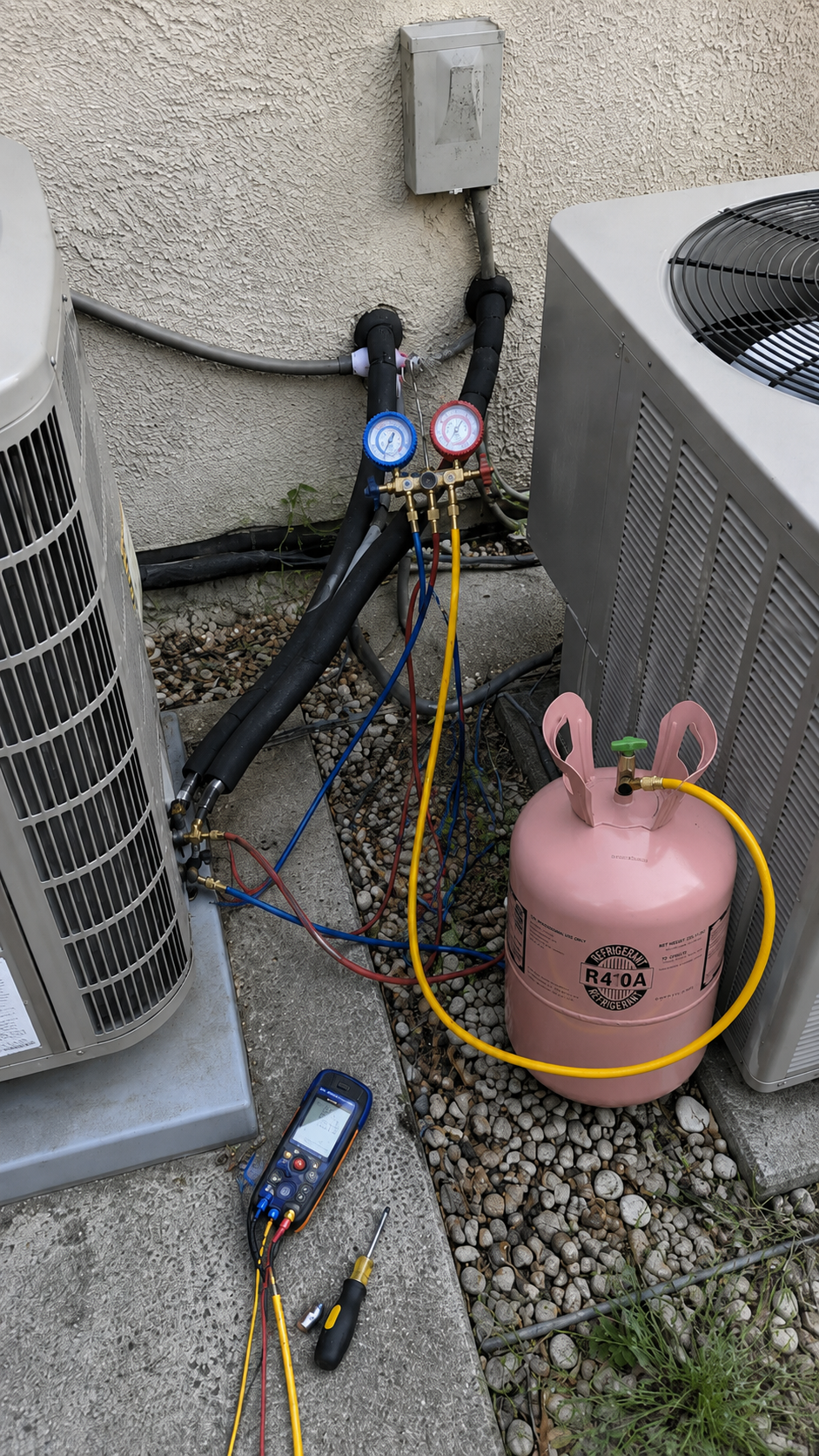

Refrigerant charging is one of the most important steps in HVAC and refrigeration service. Whether you are working on a residential air conditioner, commercial refrigeration unit, heat pump, or automotive A/C system, the correct refrigerant charge directly affects system performance, energy efficiency, compressor reliability, and long-term equipment life.
However, charging refrigerant is not simply a matter of “adding more gas.” A proper refrigerant charging process requires identifying the correct refrigerant type, checking for leaks, recovering existing refrigerant when needed, evacuating the system, and charging by the manufacturer’s specified weight or system operating conditions.
In the United States, technicians who service, maintain, repair, or dispose of equipment that could release regulated refrigerants generally need EPA Section 608 certification for stationary HVAC/R equipment. EPA rules also apply to many substitute refrigerants, including HFCs.
Why Proper Refrigerant Charging Matters
An incorrect refrigerant charge can cause serious system problems. Undercharging may lead to poor cooling performance, low suction pressure, high superheat, evaporator coil icing, and compressor overheating. Overcharging can cause high head pressure, reduced efficiency, liquid floodback, compressor damage, and nuisance safety trips.
For professional HVAC technicians, the goal is not just to make the system feel cold temporarily. The goal is to restore the system to the correct operating condition based on the equipment design, refrigerant type, and manufacturer specifications.
Step 1: Identify the Correct Refrigerant Type
Before charging any system, always verify the refrigerant type listed on the equipment nameplate or service label. Common refrigerants include:
R22 refrigerant
R410A refrigerant
R134A refrigerant
R404A refrigerant
R407C refrigerant
R32 refrigerant
R1234yf refrigerant
Different refrigerants have different pressure-temperature characteristics, oil compatibility, system design requirements, and safety classifications. They should not be mixed or used as direct substitutes unless the system has been properly evaluated and converted according to approved procedures.
For example, an R22 system cannot simply be charged with R410A. R410A operates at significantly higher pressures and requires equipment specifically designed for that refrigerant. Mixing refrigerants can cause unstable pressure readings, poor performance, and possible equipment damage.
Step 2: Check for Leaks Before Adding Refrigerant
A properly sealed refrigeration system should not need frequent refrigerant top-offs. If the system is low on refrigerant, there is a good chance it has a leak.
Common leak points include:
Service valves
Brazed joints
Flare fittings
Evaporator coils
Condenser coils
Pressure switches
Schrader cores
Line set connections
Professional technicians should locate and repair leaks before recharging the system. Simply topping off a leaking system may temporarily improve cooling, but it does not solve the root problem. It can also lead to repeated refrigerant loss, system contamination, and higher operating costs.
Step 3: Recover Existing Refrigerant When Needed
If the system needs to be opened for repair, or if the refrigerant must be removed, the existing refrigerant should be recovered using proper recovery equipment. Refrigerants should not be intentionally vented into the atmosphere.
EPA Section 608 rules cover refrigerant recovery, recycling, technician certification, and safe handling requirements for stationary refrigeration and air-conditioning systems.
Using the correct recovery cylinder and recovery machine is important, especially when dealing with high-pressure refrigerants or blended refrigerants.
Step 4: Evacuate the System
If the system has been opened, repaired, or completely lost its charge, evacuation is required before charging. A vacuum pump removes air and moisture from the system.
Moisture inside the system can cause:
Acid formation
Ice blockage
Expansion valve problems
Compressor damage
Poor cooling performance
System corrosion
For best results, technicians should use a micron gauge rather than relying only on manifold gauge readings. The system should hold a stable vacuum before refrigerant is added.
Step 5: Charge Refrigerant by Weight
The most accurate method for charging many systems is charging by weight. The manufacturer’s nameplate usually lists the factory refrigerant charge amount.
A digital refrigerant scale should be used to measure the exact amount added. This is especially important for packaged units, mini-splits, automotive A/C systems, and smaller sealed systems.
For systems with long line sets or field-installed piping, additional refrigerant may be required based on manufacturer instructions. Always follow the equipment manual for line set adjustments.
Step 6: Understand Liquid Charging vs. Vapor Charging
Some refrigerants can be charged as vapor, while many blended refrigerants should be charged as liquid to maintain the correct composition.
Blended refrigerants such as R410A, R407C, and R404A are commonly charged as liquid from the cylinder. This helps prevent fractionation, where the refrigerant blend composition changes during charging.
When charging liquid refrigerant through the low side, technicians should meter the refrigerant carefully to prevent liquid slugging. In many cases, part of the charge may be added into the high side with the system off, then the remainder can be adjusted while the system is running.
Step 7: Verify System Operation
After charging, the system should be tested under stable operating conditions. Important readings may include:
Suction pressure
Discharge pressure
Indoor return air temperature
Supply air temperature
Outdoor ambient temperature
Superheat
Subcooling
Compressor amperage
Evaporator coil condition
Condenser airflow
For fixed-orifice systems, superheat is commonly used as a key charging reference. For TXV systems, subcooling is often used to verify the charge. Always follow the manufacturer’s charging chart when available.
Common Refrigerant Charging Notes
R22 Refrigerant
R22 was widely used in older residential and commercial air-conditioning systems. Before charging an R22 system, confirm that the equipment still uses R22 and has not been converted to an alternative refrigerant. R22 systems require proper handling, leak checking, and compatible components.
R410A Refrigerant
R410A operates at higher pressures than R22. Technicians should use R410A-rated gauges, hoses, and recovery equipment. R410A is a blended refrigerant and is typically charged as liquid.
R134A Refrigerant
R134A is commonly used in automotive A/C and some refrigeration applications. Charging should be based on the system nameplate, operating pressures, ambient temperature, and vent temperature.
R404A Refrigerant
R404A is commonly used in commercial refrigeration and low-temperature applications. Because it is a blended refrigerant, liquid charging is generally recommended.
R407C Refrigerant
R407C has noticeable temperature glide and must be handled carefully. Proper charging and accurate pressure-temperature interpretation are important for reliable system performance.
Safety and Compliance Considerations
Refrigerant charging should only be performed by trained and properly certified professionals. In the U.S., EPA Section 608 certification is required for technicians who work on many stationary HVAC/R systems containing regulated refrigerants. Certification types depend on the equipment category, including small appliances, high-pressure appliances, and low-pressure appliances.
Technicians should also wear proper PPE, work in ventilated areas, avoid refrigerant exposure to skin or eyes, and follow all cylinder storage and transportation requirements.
Choosing Quality Refrigerant
The quality of the refrigerant matters. Contaminated or low-quality refrigerant may contain air, moisture, or incorrect chemical composition, which can cause pressure issues, poor cooling, and compressor damage.
When purchasing refrigerant, professionals should look for:
Correct refrigerant type
Sealed cylinder
Clear product labeling
Reliable supplier
Proper storage condition
Compatibility with the target system
Using the correct refrigerant from a trusted source helps reduce callbacks, protects equipment, and improves customer satisfaction.
Final Thoughts
Charging refrigerant is a technical process that requires proper tools, training, and system knowledge. The correct procedure includes identifying the refrigerant type, checking for leaks, recovering refrigerant when necessary, evacuating the system, charging by weight, and verifying operation with pressure and temperature measurements.
For HVAC professionals, proper refrigerant charging is not just about adding refrigerant. It is about restoring the system to safe, efficient, and reliable operation.
